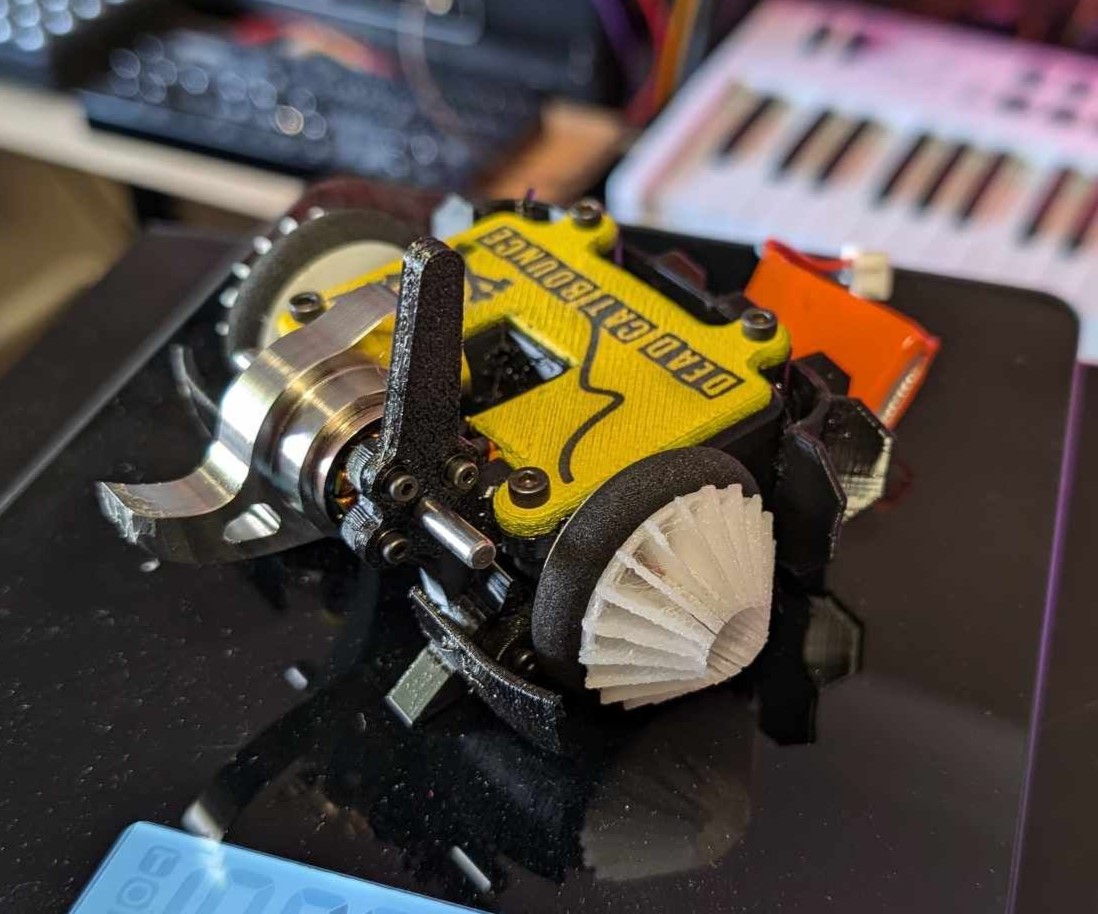

150g Antweight Combat Robots

Transmitter

This is what you use to control your robot.

IMPORTANT: You MUST choose the JP4IN1 version, or it will not connect to the receiver.

• Cheapest - Flysky Fs I6X

• Better - Jumper T-Pro V2 JP4IN1

• Best - RadioMaster MT12

Speed Controller / Receiver

This recieves commands from your transmitter and controls your drive motors, as well as send signals to your weapon controller.

• Malenki Nano


Battery

This is your robots power source! Sized to provide sufficient power for a 3 minute match.

• 200mah 2S Lipo. Higher the C rating the better

Charger

How you charge your battery. At this scale, a low current charger is recommended to avoid cooking the small capacity pack.

This 500ma USB charger is a good start, paired with a USB adapter.

Drive motors

Moves your robot around!

• Cheapest – Aliexpress N20 specials

• Best – Ranglebox N10

Weapon Motor

• Cheapest – small brushless with metal ruler attached.

• Better – Weapon pressed around motor bell and supported with bearing

• Best – Hubmotor / decoupled weapon motor with belt or gears.

Weapon ESC

Optional, but if you want a spinning weapon then you need an ESC to control it.

• AM32 40A ESC

Switch

• Cheapest – Link

• Better – Screw switch
